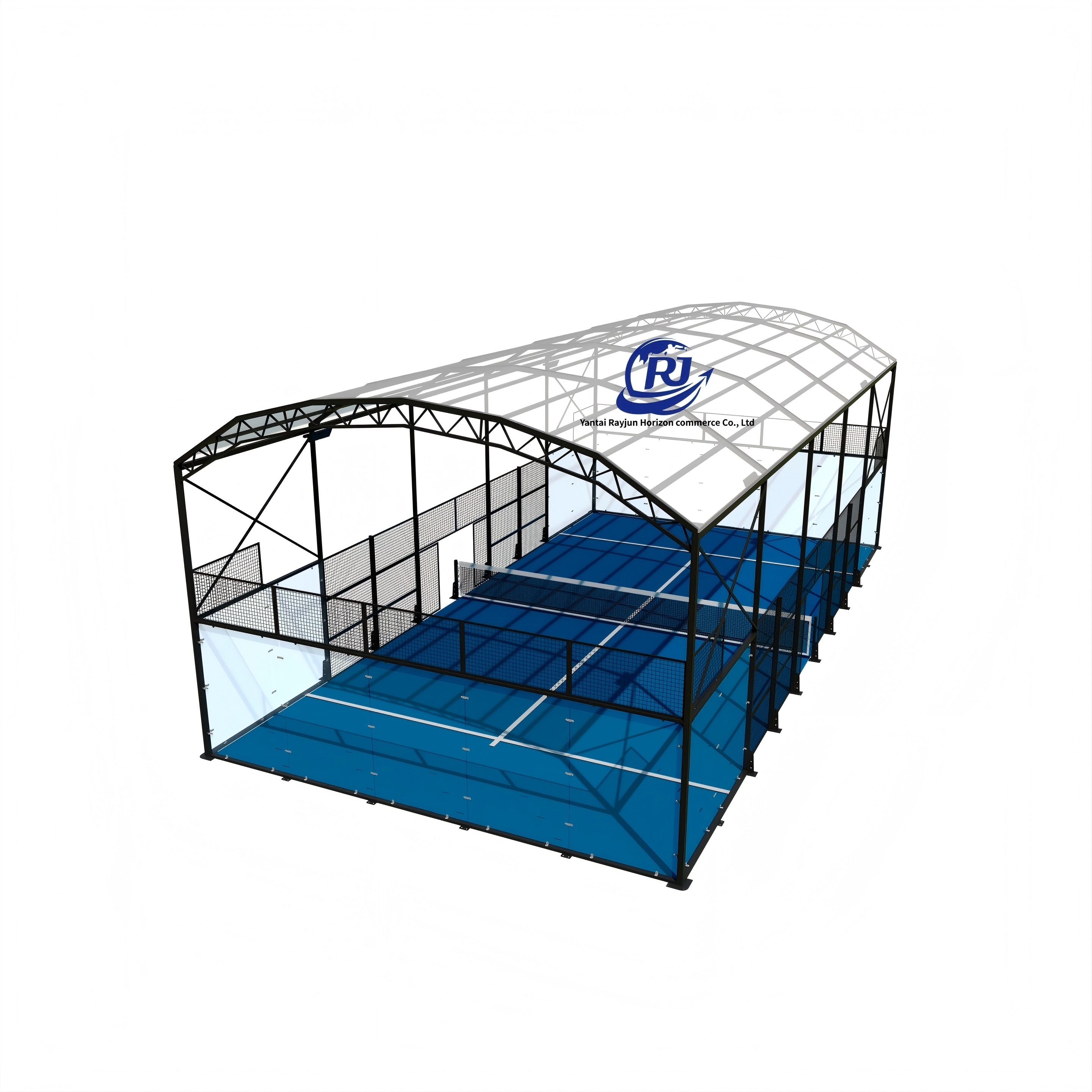

Covered padel court
- Covered padel court
- Q235 steel
- Qingdao,China
- 10m*20m
- Customized
padel court, covered padel court, padel court factory
Detailed parameters of Covered Padel Court
Roof: Double PVDF-COATED
Height: Top height 8.8m, Side height 6m
Cover frame: Steel tube.
LED LIGHT：lighting towers with 8pcs LED light 200W.
COMPONENTS: Stainless Steel 304 bolts and nuts, Rubber pad, Glass fitting, etc
PILLAR & MESHPILLAR: Q235 material corner tube with size 100*100*3mm*4m length \ side support tube with size 50*100mm*3mm
TEMPERED GLASS: Tempered glass with 12mm thickness with standard EN12150 - 2:2004
GRASS:
BACKING: PP + Net
COATING: Latex
STANDARD: En14041:2008
FILLER: Quartz sand ∅1.6mm - 1.25mm, 10kgs/m², visible fiber 2mm - 3mm
GAUGE: 3/16"
DTEX: 9000D
Fiber: Texturized or KDK depends on budget.
NET WITH POLE:
NET MATERIAL: Synthetic fiber
SIZE: 10 meters long and 0.88m high at the center, rising to 0.92 meters at the ends, with a maximum tolerance of 0.005 meters.
