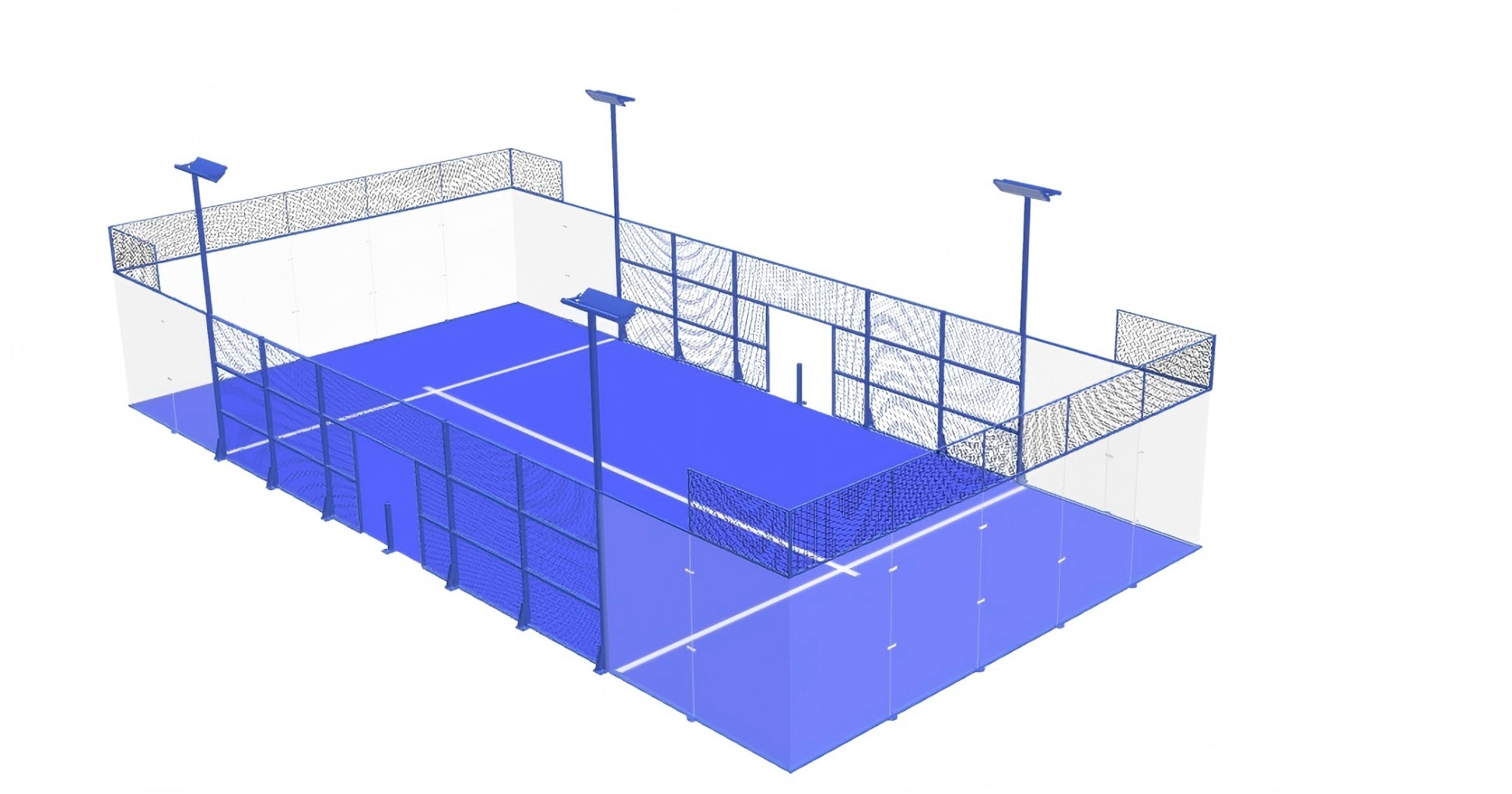

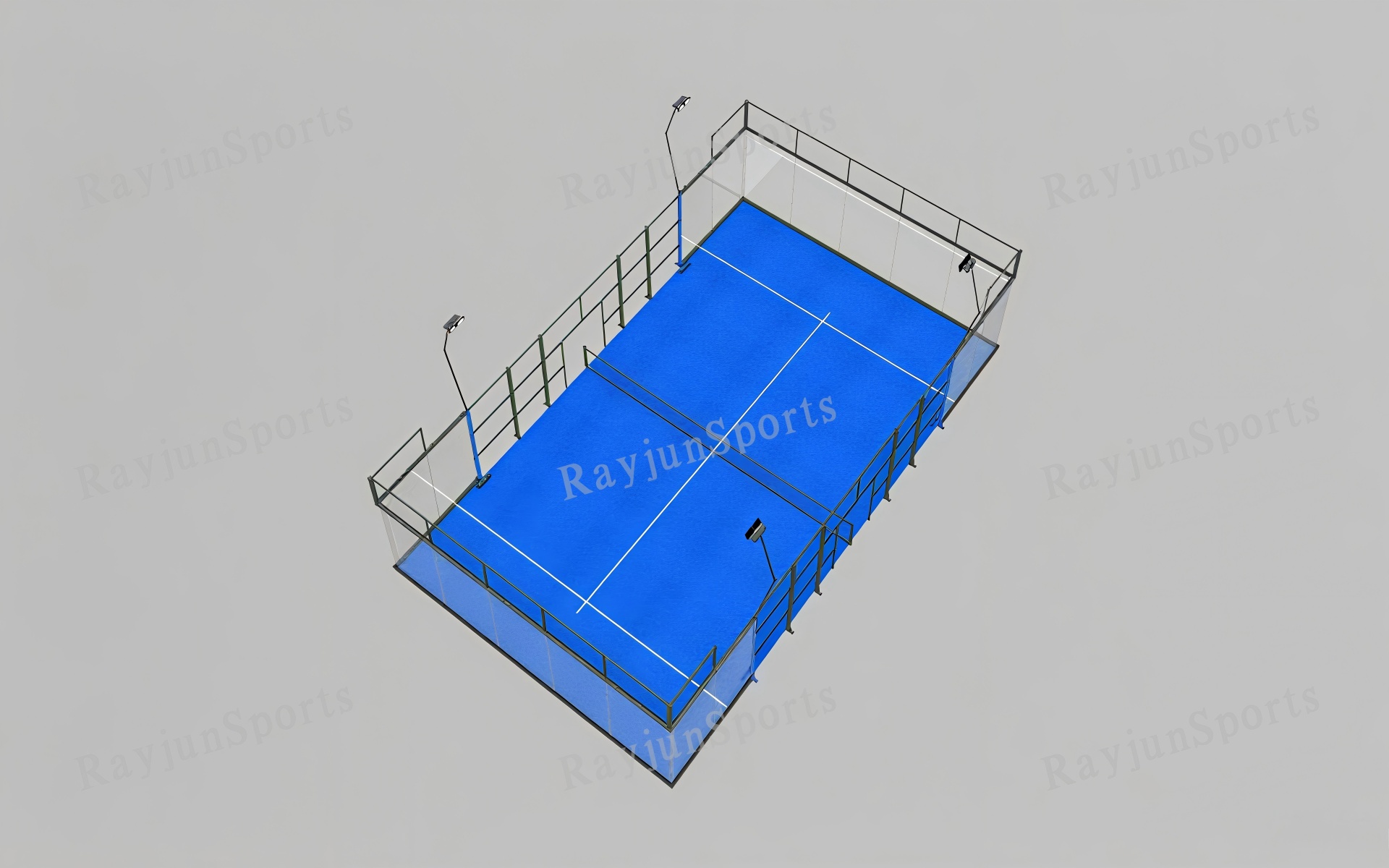

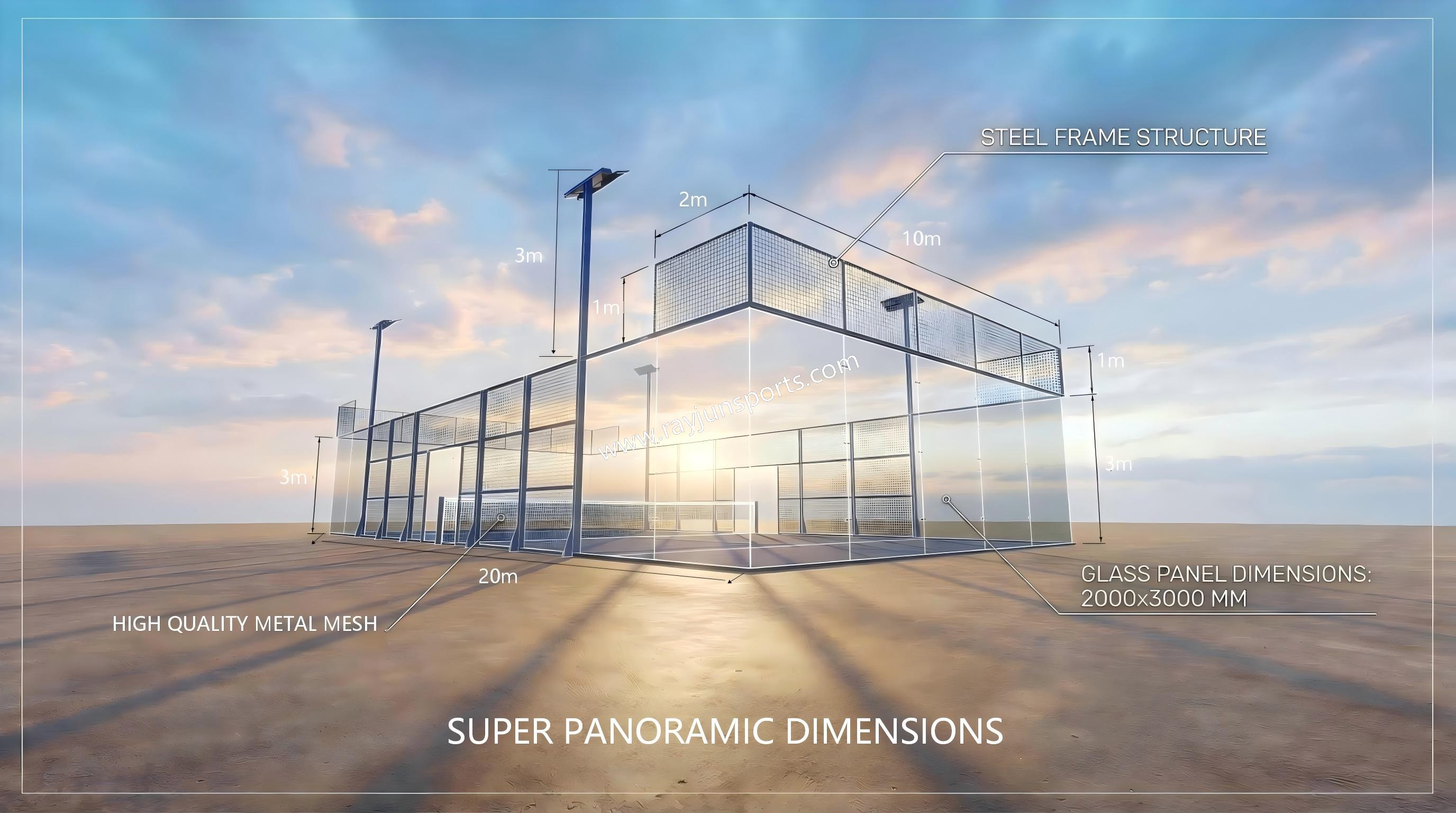

Detailed parameters of Super Panoramic Padel Court

LIGHT POST：4 tubes size 50mm*100mm with 3 meters high, fitting with lighting tube up to 6 meters, Z style and C style are available.

LED LIGHT：lighting towers with 8pcs LED light 200W.

COMPONENTS: Stainless Steel 304 bolts and nuts,  Rubber pad, Glass fitting, etc

PILLAR & MESHPILLAR: Q235 material corner tube with size 100*100*3mm*4m length \ side support tube with size 50*100mm*3mm

TEMPERED GLASS: Tempered glass with 12mm thickness with standard EN12150 - 2:2004

GRASS:
BACKING: PP + Net
COATING: Latex
STANDARD: En14041:2008
FILLER: Quartz sand ∅1.6mm - 1.25mm, 10kgs/m², visible fiber 2mm - 3mm
GAUGE: 3/16"
DTEX: 9000D
Fiber: Texturized or KDK depends on budget.

NET WITH POLE:
NET MATERIAL: Synthetic fiber
SIZE: 10 meters long and 0.88m high at the center, rising to 0.92 meters at the ends, with a maximum tolerance of 0.005 meters.



Key Features and Designs of Super Panoramic Padel Court:

Versatile Lighting Poles: Combining both aesthetics and function, Lighting tube with a minimum height of 6m.

Steel Structure: Using Q235 steel, The reinforced structure with 4-meter-tall columns provides exceptional stability against wind and extended longevity. EN-Certified High-Performance.

Artificial Turf: Specially designed for padel courts, and Manufactured under EN14041:2008 standards.

High-Quality Surface Treatment: Adopting a zinc coating as first layer and electrostatic powder coating as second layer, thus enhancing corrosion resistance and allows for a variety of custom color options to cater to personalized preferences.

Energy-Saving LED Lighting: Equipped with an IP65 protection level, featuring eight 200W LED lights, it not only saves energy but also ensures a luminosity of 300 Lux to optimize night match visibility.

EN-Certified Tempered Glass: Manufactured to EN12150 - 2:2004 standards, the 12mm thick glass is impact - resistant while providing clarity of vision.

Netting: 10m long and 0.88m high at the center, rising to 0.92m at the ends, with a maximum tolerance of 0.005m, ensuring absolute fairness during competition.
