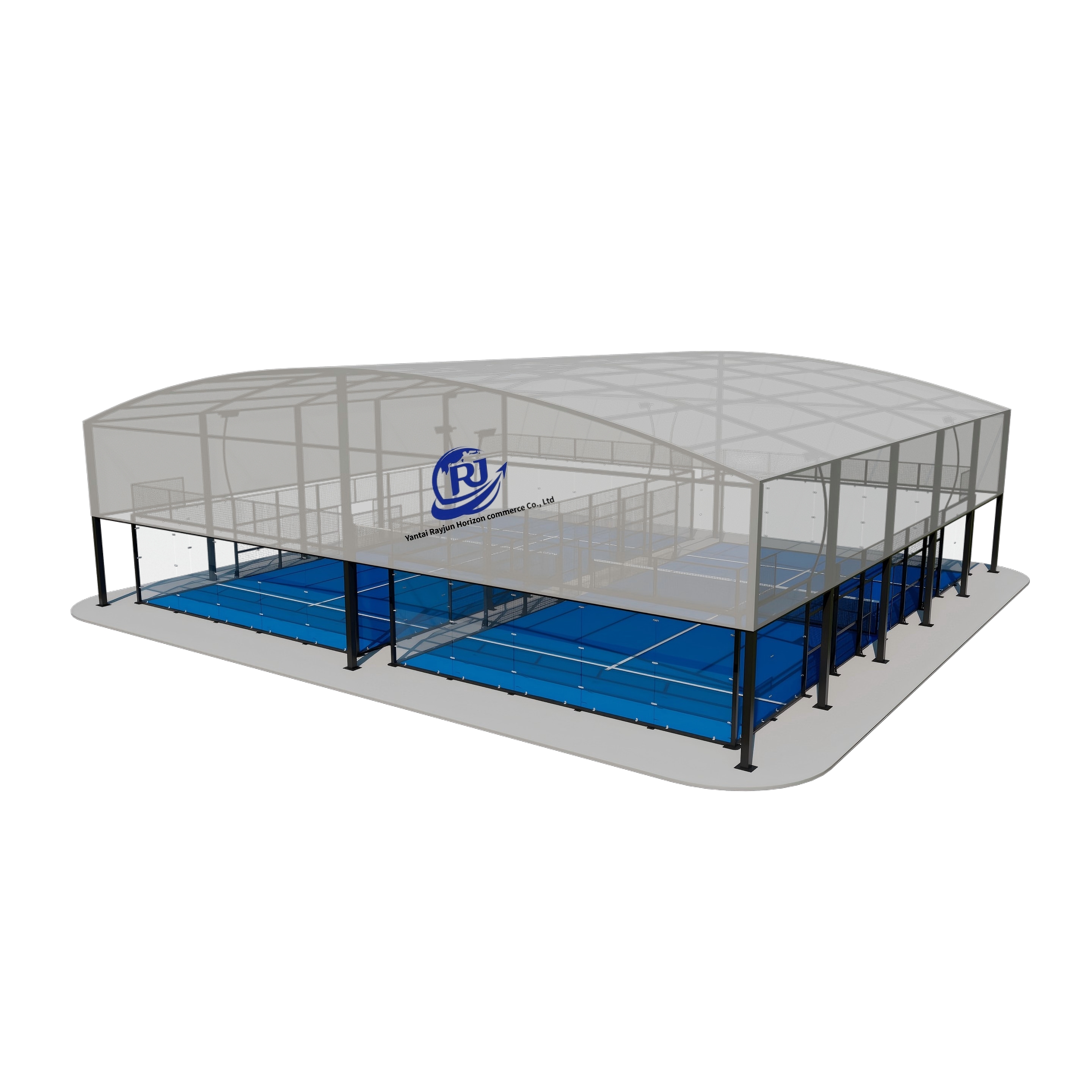

Detailed parameters of Customized Roof Padel Court



Roof can be customozed based on court size, and courts numbers.


LIGHT POST：4 tubes size 50mm*100mm with 3 meters high, fitting with lighting tube up to 6 meters, Z style and C style are available.

LED LIGHT：lighting towers with 8pcs LED light 200W.

COMPONENTS: Stainless Steel 304 bolts and nuts,  Rubber pad, Glass fitting, etc

PILLAR & MESHPILLAR: Q235 material corner tube with size 100*100*3mm*4m length \ side support tube with size 50*100mm*3mm

TEMPERED GLASS: Tempered glass with 12mm thickness with standard EN12150 - 2:2004

GRASS:
BACKING: PP + Net
COATING: Latex
STANDARD: En14041:2008
FILLER: Quartz sand ∅1.6mm - 1.25mm, 10kgs/m², visible fiber 2mm - 3mm
GAUGE: 3/16"
DTEX: 9000D
Fiber: Texturized or KDK depends on budget.

NET WITH POLE:
NET MATERIAL: Synthetic fiber
SIZE: 10 meters long and 0.88m high at the center, rising to 0.92 meters.
